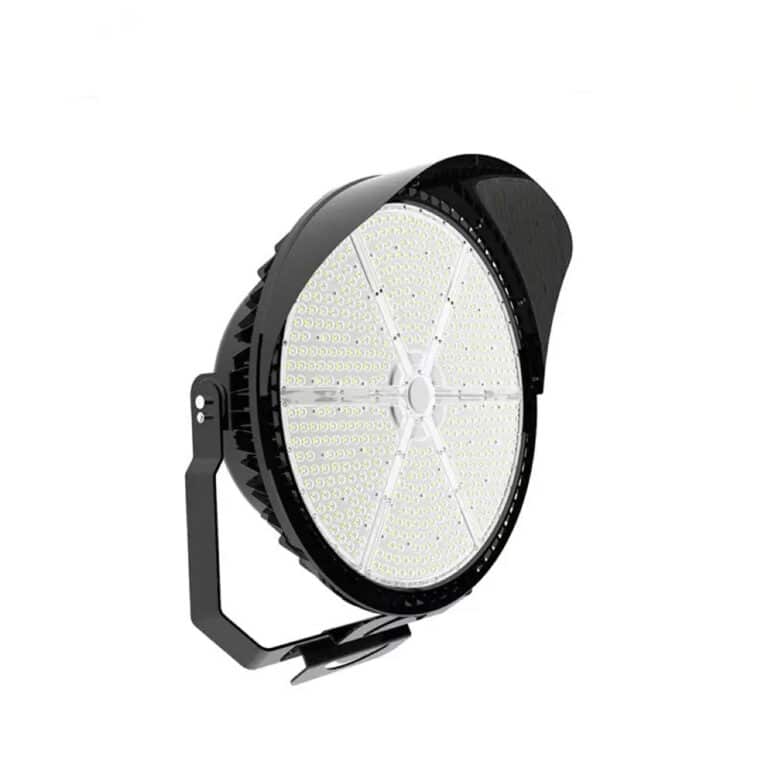

Dmx Stadium Light Football Manufacturer-ONLY ACE

This is a modular LED stadium light designed specifically for modern high-standard sports venues and professional event lighting. it uses high -efficiency imported LED light sources and, through precise and scientific optical design, effectively controls on-site glare and light flicker to avoid light interference with athletes. The precisely adiusted light color highlyrestores natural light, fully meeting the need’s of on-site photography and TV broadcasting.it is widely used in community sports parks, indoor and outdoor lighted stadiums, and large sports stadiums.lt is also suitable for floodlighting of large factories, intersections,open squares, port terminals, mines and stone yards, construction sites, and special high-sized objects
Give a Quick Quote:

Product Description

Product Feature
● Utilizesimported, large-chip, high-efficiency, and high-CRI LED light sources for high efficiency, energy saving, and long life.
● Utilizes a high-efficiency driver from a renowned domestic brand, ensuring stable, flicker-free performance.
● The heat sink and housing are integrated, with the LEDs directly and securely attached to the housing. Heat dissipation is
achieved through convection from the
housing’s heat dissipation fins, guaranteeing a 50,000-hour lifespan for the LED stadium light.
● The housing is die-cast aluminum, featuring a rational structural design that effectively dissipates heat and is waterproof
and dustproof. The surface is powder-coated for UV resistance and corrosion resistance, meeting IP66 standards.
● Utilizes standard ADC12 die-cast aluminum, a green, environmentally friendly material that contains no lead, mercury, or
other pollutants, ensuring zero environmental impact.Developed independently, with design and utility model patents,
intellectual property protection ensures peace of mind for sellers.

Specifications

Photoelectric parameter
Model ONLY ACE-600 ONLY ACE-800  ONLY ACE-1000
System power 600W 800W 1000W
Initial light effect  160lm/W
Operating voltage 100-277VAC
Surge voltage 2kv-4kv
Power factor ≥0.95
Color temperature (CCT) 400Ok-650Ok
Color rendering index (CRI) Ra>80
Lamp material Die-cast aluminum (ADC12)
Color options Black/customize
Ambient temperature -30℃~50℃
Protection rate IP66
Lifespan  50000h
Warranty  5 Years



Scenario Application
Model  ONLY ACE-600-A  ONLY ACE-800-A ONLY ACE-1000-A
System power  600W 800W  1000W
Recommended installation height 12-20m 15-25m  18-35m
Installation Method Bracket
Lighting Angle  15°/30° /60°
Applicable Scenarios  Large outdoor stadiums, highmast, towercranes
Not applicable scenarios Temperatureis greaterthan -30~50 degrees. There areflammabledust andflammab legas environments,
outdoor environments and corrosive environ ments
