*Lamp light-emitting body adopts high-efficiency light technology，LCM modular combination Light out of the light efficient uniform no glare trouble up and down light mode, CCT=2700K-6500K
*The light source uses LED2835/3030 highlighted beads with a high thermal conductivity aluminum substrate ) Characteristic High Conversion Efficiency Non-stroboscopic Driver
*High quality Aluminum profile with strong heat dissipation
*High transmittance, light efficiency up to 100Lm/W
*Simple installation and splicing
| Model | Segments | Dimensions(mm) | Power(W) |
| LC3535-445 | 1 | Φ445*W35*H35 | 10 |
| LC3535-595 | 1 | Φ595*W35*H35 | 15 |
| LC3535-735 | 1 | Φ735*W35*H35 | 20 |
| LC3535-895 | 1 | Φ895*W35*H35 | 25 |
| LC3535-995 | 1 | Φ995*W35*H35 | 30 |
| LC3535-1195 | 1 | Φ1195*W35*H35 | 35 |
| LC3535-1535 | 4 | Φ1535*W35*H35 | 40 |
| LC3535-1835 | 4 | Φ1835*W35*H35 | 55 |
| LC3535-2035 | 4 | Φ2035*W35*H35 | 60 |
| LC3535-2435 | 4 | Φ2435*W35*H35 | 75 |
| LC3535-3035 | 6 | Φ3035*W35*H35 | 90 |
| LC3535-4035 | 8 | Φ4035*W35*H35 | 120 |
| LC3535-5035 | 8 | Φ5035*W35*H35 | 160 |
| Item | Led Ring Light |
| LED Type | SMD2835 |
| Profile Material | Aluminum 6063-T5 |
| Diffuser | Opal PC / Prismatic PMMA / Optical Lens |
| Input Voltage | AC100-277V / AC220-240V, 50/60HZ |
| Driver Brand | BOKE / Cupower |
| Color Rendering | CRI>80 [ Optional CRI>90 / CRI>95 ] |
| Luminous Efficiency(Lm/W) | 100-120 |
| Control Gear | On-Off / 0-10V / DALI / PUSH / Triac / Casambi / Emergency / PIR sensor |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K / CCT Switch / Tunable / RGBW |

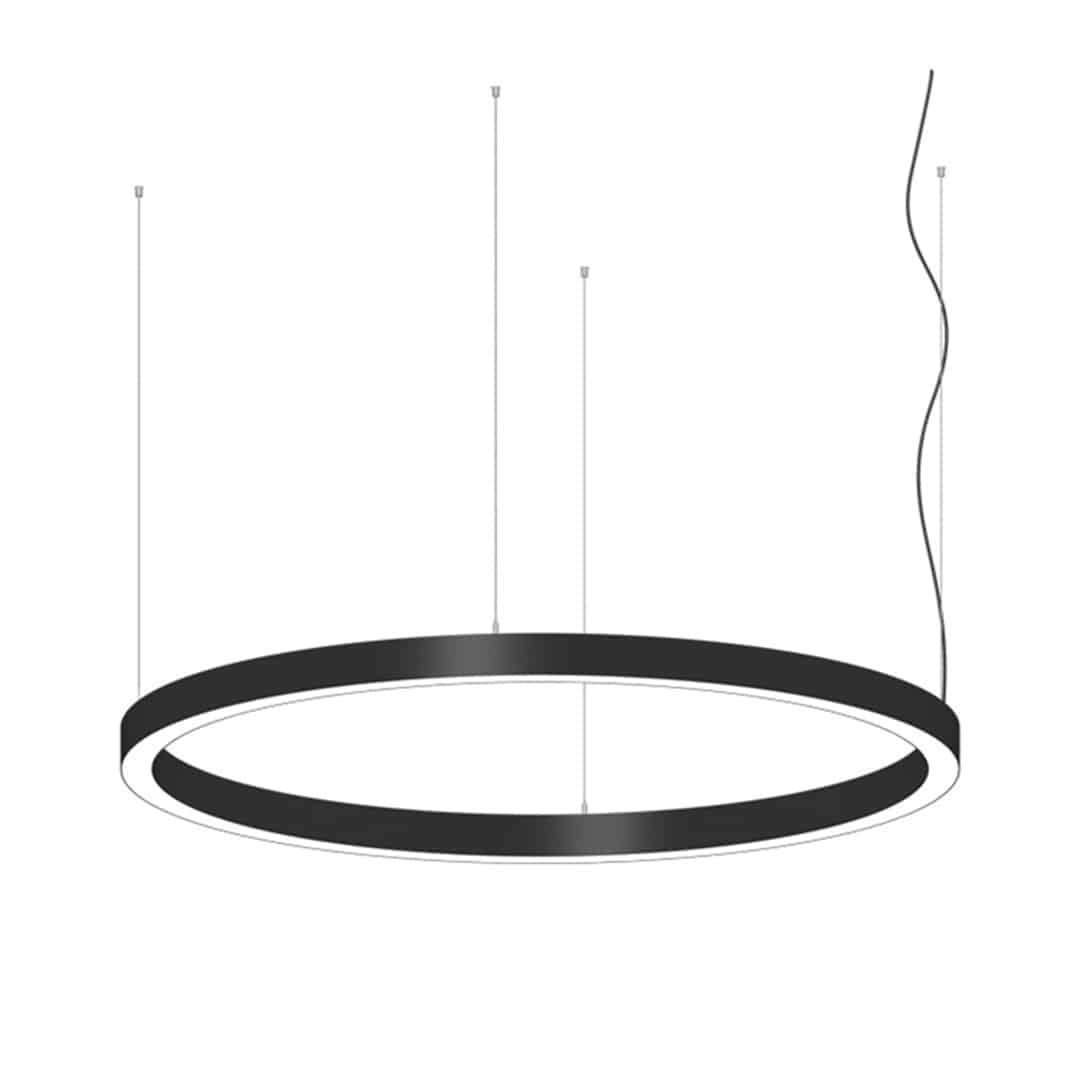

| Installations | Parallel Suspended / Central Suspended / Surface Mounted |
| Finish Color | White / Black / Silver / Gold |
| Warranty | 5 years |
| Flicker Free | Yes |
| PF | >0.95 |
| IP Rate | IP20 |
